Definition of Pipe elbow

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 90° or 45° angle, though 22.5° elbows are also made. The ends may be machined for butt welding, threaded (usually female), or socketed, etc. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (SW) or socketed welding(SW) etc.

Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.

Elbows are categorized based on various design features as below:

  • Long Radius (LR) Elbowis also called LR elbow – means the radius is 1.5 times the pipe diameter
    • L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
    • L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.
    • L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.
  • Short Radius (SR) Elbowis also called SR elbow, – means the radius is 1.0 times the pipe diameter
    • Short radiu 45°Elbow: Short radius 45° elbow changes the direction by 45 degrees.
    • Short radius 90°Elbow: Short Radius 90° elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.
    • Short radius 180° Elbow: Short Radius 180° return bend allows complete reversal of flow
    • Carbon steel: ASTM/ASME A234 WPB-WPC
    • Alloy steel: --WP 22-WP 5-WP 91-WP 911
      • ASTM A335 P22
      • ASME SA335 P91 elbow
      • ASTM A234 WP 11
      • Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
      • High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
      • Stainless steel:

        • ASTM/ASME A403 WP 304-304L-304H-304LN-304N
        • ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
        • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H

Elbows are design features as below

A 90 degree elbow is also called a “90 bend” or “90 ell”. It is a fitting which is bent in such a way to produce 90 degree change in the direction of flow in the pipe. It used to change the direction in piping and is also sometimes called a “quarter bend”.

A 90 degree elbow attaches readily to plastic, copper, cast iron, steel and lead. It can also attach to rubber with stainless steel clamps. It is available in many materials like silicone, rubber compounds, galvanized steel, etc. The main application of an elbow (90 degree) is to connect hoses to valves, water pressure pumps, and deck drains. These elbows can be made from tough nylon material or NPT thread.

A 45 degree elbow is also called a “45 bend” or “45 ell”. It is commonly used in water supply facilities, food industrial pipeline networks, chemical industrial pipeline networks, electronic industrial pipeline networks, air conditioning facility pipeline, agriculture and garden production transporting system, pipeline network for solar energy facility, etc.

Elbows are split into two groups which define the distance over which they change direction; the center line of one end to the opposite face. This is known as the "center to face" distance and is equivalent to the radius through which the elbow is bent.

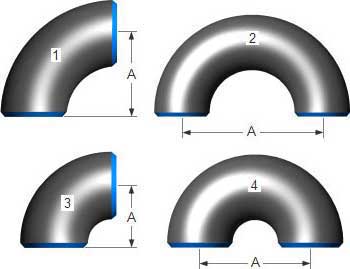

Here below, for example, you will find the center to face distance of NPS 2 elbows (the A distance on the image)


The center to face distance for a "long" radius elbow, abbreviated LR always is "1½ x Nominal Pipe Size (NPS) (1½D)", while the center to face distance for a "short" radius elbow, abbreviated SR even is to nominal pipe size.

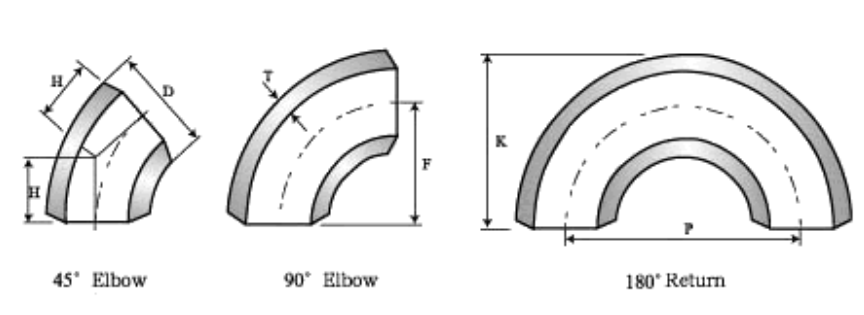

Nominal pipe size Outside Diameter
at Bevel
Center to End Center to Center Back to Faces
45° Elbows 90°Elbows 180°Return
H
F
P
K

DN

INCH

Series A Series B LR LR SR LR
SR
LR
SR
15
1/2
21.3
18
16
38
-
76
-
48
-
20
3/4
26.9
25
16
38
-
76
-
51
-
25
1
33.7
32
16
38
25
76
51
56
41
32
11/4
42.4
38
20
48
32
95
64
70
52
40
11/2
48.3
45
24
57
38
114
76
83
62
50
2
60.3
57
32
76
51
152
102
106
81
65
21/2
76.1(73)
76
40
95
64
191
127
132
100
80
3
88.9
89
47
114
76
229
152
159
121
90
31/2
101.6
-
55
133
89
267
178
184
140
100
4
114.3
108
63
152
102
305
203
210
159
125
5
139.7
133
79
190
127
381
254
262
197
150
6
168.3
159
95
229
152
457
305
313
237
200
8
219.1
219
126
305
203
610
406
414
313
250
10
273.0
273
158
381
254
762
508
518
391
300
12
323.9
325
189
457
305
914
610
619
467
350
14
355.6
377
221
533
356
1067
711
711
533
400
16
406.4
426
253
610
406
1219
813
813
610
450
18
457.2
478
284
686
457
1372
914
914
686
500
20
508.0
529
316
762
508
1524
1016
1016
762
550
22
559
-
347
838
559

600
24
610
630
379
914
610
650
26
660
-
410
991
660
700
28
711
720
442
1067
711
750
30
762
-
473
1143
762
800
32
813
820
505
1219
813
850
34
864
-
537
1295
864
900
36
914
920
568
1372
914
950
38
965
-
600
1448
965
1000
40
1016
1020
631
1524
1016
1050
42
1067
-
663
1600
1067
1100
44
1118
1120
694
1676
1118
1150
46
1168
-
726
1753
1168
1200
48
1220
1220
758
1829
1219
